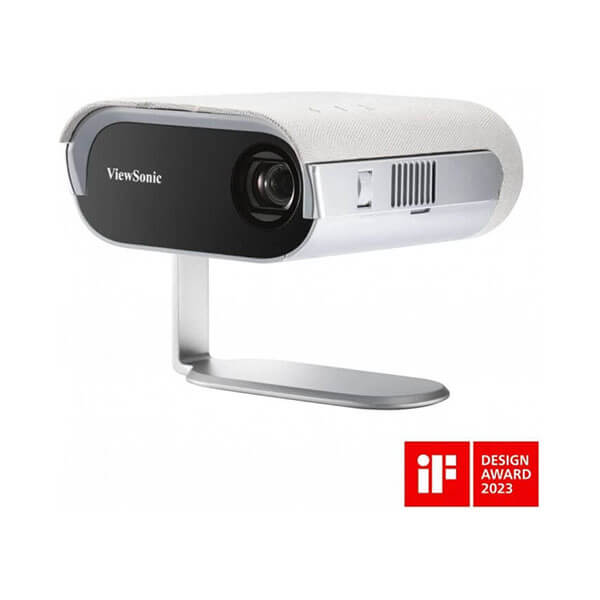

The ViewSonic M1 Pro is an ultra-portable LED projector that delivers dynamic and high-quality entertainment while helping you to reimagine your space. A built-in battery and the power bank compatibility give you hours of fun anywhere you go. Immerse yourself indoors or outdoors with an up to 100” large screen in 720p HD resolution. Its adaptable smart stand enables 360-degree customized projection angle, while doubling as a lens cover and power combo.
Once the lens is uncovered, the projector automatically powers on to full brightness for instant entertainment. The touch buttons on the mesh surface provide intuitive use and a tactile texture at the same time. Harman Kardon stereo speakers create room-filling sound for an amplified experience, while more flexible audio needs can be achieved via Bluetooth connectivity. Integrated Wi-Fi makes content sharing easier than ever thanks to both wireless screen mirroring from smart devices and built-in access to streaming platforms.
- Specification
Projection System: 0.3″ 720p
Native Resolution: 1280×720
Brightness: 600 (LED Lumens)
Contrast Ratio: 120000:1
Display Colour: 1.07 Billion Colours
Light Source Type: LED
Light Source Life (hours) with Normal Mode: 30000
Lens: F=1.7, f=7.4mm
Projection Offset: 100%+/-5%
Throw Ratio: 1.07
Optical Zoom: Fixed
Digital Zoom: 0.8x-1.0x
Image Size: 40″-150″
Throw Distance: 0.94m-3.52m
(42.6″@1m)
Keystone: H:+/-40° , V: +/-40°
Audible Noise (Normal): 26dB
Audible Noise (Eco): 25dB
Local Storage: Total 16GB
(12GB available storage)
Input Lag: 68ms
Resolution Support: VGA(640 x 480) to FullHD(1920 x 1080)
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Horizontal Frequency: 15K-102KHz
Vertical Scan Rate: 23-120Hz - Input
HDMI: 1
(HDMI 1.4/ HDCP 1.4)
USB Type C: 2 (Video/5V/2A out *1,
DC in /15V/3A *1)
Audio-in (Bluetooth): 1 (BT4.2)
USB Type A: 1
(USB2.0 Reader)
Wifi Input: 1 (5Gn) - Output
Audio-out (3.5mm): 1
Audio-out (Bluetooth): 1 (BT4.2)
Speaker: 3W Cube x2
(Full range x2)
USB Type A (Power): 1
(USB2.0 – 5V/1.5A,
share with USB A Input)
- Control
USB Type A (Services): 1
(share with USB A Input) - Others
Power Supply Voltage: Power adaptor:
Input: 100~240V
Output: 19VDC / 3.42ABattery:
12000mAh(4000mAh 3.7Vx3)
(1.4hrs@Normal, 2hrs@Eco)
Power Consumption: Normal: 45W
Standby: <0.5W
Operating Temperature: 0~40℃
Carton: Colour
Net Weight: 0.95Kg
Gross Weight: 2.8Kg
Dimensions (WxDxH) with Adjustment Foot: 182x140x62mm
Packing Dimensions: 453x242x94mm
OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese, Greek, Hungary Total 24 languages
User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages - Standard Accessory
Power Cord: 1
USB-C Cable: 1 (1m)
Remote Control: 1
QSG: Yes
Warranty Card: Yes (CN & JP)
Carry Bag: Yes
